Technical Specifications
|
Model |
Flow rate, L/min |
Oxygen purity |
Outlet pressure, MPa |
Power consumption, W |
Dimensions (L × W × H), mm |
Noise level, dB |
Weight, kg |
| Oxymedic 10 Compact | 10 | 93 % ± 3 % | 0.4–0.6 | < 1250 | 950 × 668 × 1600 | < 50 | 250 |
| Oxymedic 20 Compact | 20 | 93 % ± 3 % | 0.4–0.6 | < 1800 | 950 × 668 × 1640 | < 60 | 278 |
| Oxymedic 30 Compact | 30 | 93 % ± 3 % | 0.4–0.6 | < 2400 | 950 × 668 × 1640 | < 60 | 298 |
The unit can be directly connected to anaesthesia and respiratory equipment, as well as to mechanical ventilation devices.
An optional DIN outlet is available.
Optional Features
- Flow meter
- DIN outlet
- Remote monitoring and uninterrupted Wi-Fi connection
- Oxygen storage tank
- Cylinder filling station
Key Features
- Fully automatic operation

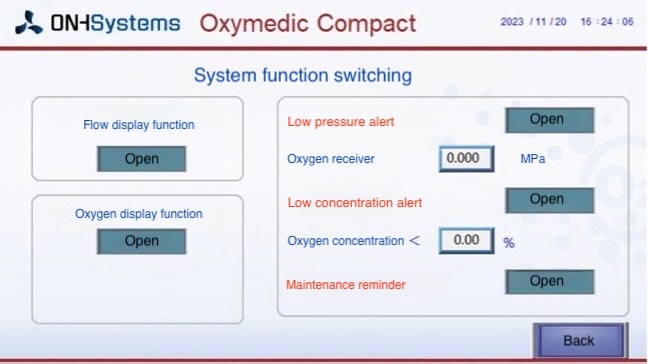

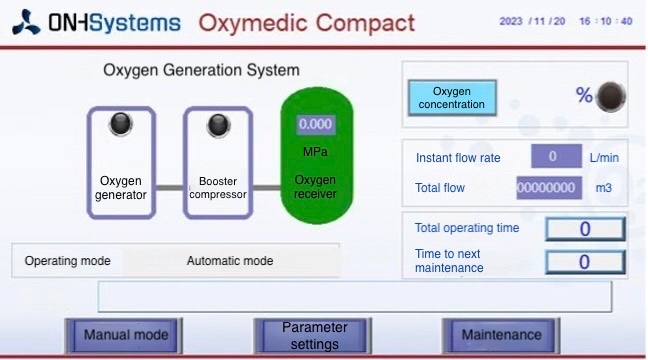

- Touchscreen interface
- Quick start-up and commissioning
- Compact and mobile design with low noise level
- Built-in oxygen analyser
- Optional additional oxygen receiver
- Modular construction
Applications
- Small medical facilities with limited or no pipeline networks
- Intensive care and resuscitation wards
- Oxygen cylinder refilling
